ChatConnector

Configuration Methods

The configuration of ChatConnector is stored in an initialization (*.ini) file. Unless explicitly specified by a command line argument, the path to the ini-file is the name of the executable file with the exe extension replaced by “.ini”.

There are two ways to change the configuration of ChatConnector. Either by directly editing the configuration in the ini-file or by using the ChatConnector’s remote console. In both cases restarting the application might be required for the changes to take effect.

Direct Edit

To directly edit the ChatConnector’s configuration, open the ini-file, perform your changes and make sure that the syntax is correct (the ini-file is read by standard Win API functions and save it).

Configuration Sections

In the ini-file, configuration sections are declared by terms surrounded by square brackets. All subsequent key-value pairs are assumed to be inside this section.

Example

[Gate_mcil]

Multi-Valued Keys

Multivalued keys are suffixed with their contiguous zero-based index surrounded by brackets.

Example

Username(0)=chatsupport@bucher-suter.com
Password(0)=!7sad&ag*36
ScriptSelector(0)=BucherSuter_support

Remote Console Edit

You can start the remote console monitors via a Telnet session or by using a DOS command prompt. Please note that only local access is possible.

Telnet Client is not installed by default on Windows Server 2008 and higher. As the remote console process of the ChatConnector can only be accessed locally, it is required to install Telnet Client on each server where ChatConnector is deployed. If the client is installed a Telnet session can be started by entering the following command in a DOS command prompt:

C:\>telnet localhost <TelnetServerPort>

or directly in a Telnet session:

Welcome to Microsoft Telnet Client

Escape Character is 'CTRL+¨'

Microsoft Telnet> open localhost <TelnetServerPort>

localhost indicates a connection to the local server and is the same as the 127.0.0.1 IP address which always points to the local host. \<TelnetServerPort> is the address of the ChatConnector’s local remote console port, which is set by the key TelnetServerPort in the ChatConnector ini-file, default 9010

After the console is started the following prompt appears:

>

Configuration Command

Use the cfg command to access the configuration values.

Syntax

[@<gateid>] cfg [{<key> [<value>]} | !save]

<gateid> is the gate id to access the configuration. If this part is omitted, the core configuration is accessed. This parameter determines which of the top-level sections should be accessed.

<key> is the key to access. If the key value pair is not in a top-level section, the path is determined automatically. If this parameter is omitted, the remote console displays all the possible keys.

<value> is the value to set for a given key. If the value contains whitespaces, it must be surrounded with quotes. If the value contains quotes or backslashes, they must be escaped with a leading backslash. If this parameter is omitted, the current value is displayed.

After having modified some settings, do not forget to save the configuration using the “!save” syntax (this must be done separately for each part – core and gates).

Example

The following example...

• ...queries the current value for the key MmPortA in gate mcil
• ...sets the value for the key MmPortA in gate mcil to 7051
• ...sets the value for the key AutoStartHttpServer in the configuration section core to false

...and saves the changes.

    >@mcil cfg MmPortA

    7050

    >@mcil cfg MmPort 7051

    Value changed.

    >cfg AutoStartHttpServer false

    Value changes.

    >@mcil cfg !save

    Configuration saved

    >cfg !save

    Configuration saved.

Complex and Multivalued values

There is a special syntax to set the value of complex types or multivalued types, or a mixture of both. With this syntax, strings must be surrounded by quotes even if they do not contain whitespaces. The configuration of complex and multivalued types is decorated with explicit examples.

Set a list

This is achieved by separating the values by a comma and enclose all values in curly brackets.
{value0,value1,value2,…}

Set a structure

This is achieved by setting the fields using an equal sign and putting the field name on its left-hand side and the field value on the right-hand side, separating the fields assignments by commas and enclose all values in curly brackets.
(key1=value1,key2=value2,…)

Example

This example creates a list of two chat users: alice with password 1234 and bob with password 5678.

\> @jabber cfg ChatUsers (username=\"alice\",password=\"1234\"),(username=\"bob\",password=\"5678\")

Notice the use of a leading backslash before every quote-character (escaping).

[Core] Configuration

AutoStartHttpServer

Default : 1

Range : 0,1

Description : Defines whether to start the HTTP server automatically at startup

AutoStartTelnetServer

Default : 1

Range : 0,1

Description : Defines whether to start the telnet server automatically at startup

ChatSessionHistoryMaxSize

Default : 50

Range : not available

Description : Maximal number of messages saved in a chat session history

HttpServerPort

Default : 9080

Range : not available

Description : Port to listen to for HTTP connections, used to display status page

LoggerConfigFile

Default : logger.config.xml

Range : not available

Description : Logger configuration file path, relative to CRMConnectorSAP executable file, value cannot be configured via remote console

GateId(n)

Default : empty

Range : not available

Description : List of connector gates to load, each GateId must have a corresponding GateType setting

GateType(n)

Default : empty

Range : not available

Description : list of gate types to load, each GateType must have a corresponding GateId setting

TelnetServerPort

Default : 9010

Range : not available

Description : Telnet (remote console) connections port

Verify Core Configuration

If you connect to the ChatConnector’s HTTP server after having restarted the ChatConnector, you should see the ChatConnector status page with one main section labeled “Core” and one section for each gate labeled “Gate <gateid>”.

Special characters

In order to support UTF-8 Multibyte special characters (e.g. Hebrew), the ChatConnector uses URL-encoding/decoding. The ChatConnector URL-encodes a chat message and transfers it as ASCII-code through the ConnectMCAL and MediaManager components. This requires, that the CRM or the CRM connector as well as the chat client has to support URL-encoded/decoded chat messages to be able to decode the URL-encoded chat message.

To enable URL-encoded/decoded chat messages, following parameter has to be set into the [core] section of the config file of the ChatConnector:

[core]
UrlEncodeChatMessages=true
...

MediaManager-Gate Configuration

[Gate_mcil]

AllowedIdleTime

Default : 3600

Range : not available

Description : Max time for an idle chat

ApplicationId

Default : 999

Range : not available

Description : MediaManager application identifier: must be unique among all applications connecting to the MediaManager

MessageFailurePolicy/DropAllMessagesOnRetryFailed

Default : 1

Range : 0,1

Description : If a chat message could not be successfully transmitted to the MediaManager, this value determines if only the failed message is dropped or any other pending message as wells

HeartbeatInterval

Default : 5000

Range : not available

Description : Amount of time between two heartbeats, this value must be less than the MediaManager's maximal interval

LogMcilCommunications

Default : 1

Range : 0,1

Description : Turns MCIL communication logging on or off

LogMcilIgnoreHeartBeats

Default : 1

Range : 0,1

Description : If set to “1”, MCIL heartbeats are ignored when MCIL communications are logged

MmHostA

Default : localhost

Range : not avilable

Description : Hostname or IP address of MediaManager A host

MmHostB

Default : localhost

Range : not available

Description : Hostname or IP address of MediaManager B host

MmPortA

Default : 7050

Range : not available

Description : Remote port of MediaManager A

MmPortB

Default : 7050

Range : not available

Description : Remote port of MediaManager B

RequestTimeout

Default : 5000

Range : not available

Description : Maximum time in milliseconds for a request/response

MessageFailurePolicy/RetryTime

Default : 300000

Range : not available

Description : Amount of time allowed in milliseconds to retry to send a chat message when it failed

MaxRerouteCount

Default : 10

Range : not available

Description : Maximum number of reroutes

RunScriptParameterInName

Default : ECC.user.BS_inout

Range : not available

Description : Specifies the variable used for the RunScript-node (incoming)

RunScriptParameterOutName

Default : ECC.user.BS_inout

Range : not available

Description : Specifies the variable used for the RunScript-node (outgoing)

ChatBeingFailoveredMessage (CBF)

Default : "The chat session is currently stopped by failover. Please be patient."

Range : not available

Description : Chat message sent when session was closed by failover.

ChatBeingTransferedMessage

Default : "The chat session is being transferred to another agent. Please be patient."

Range : not available

Description : Message that will be displayed to the user if the chat session is transferred to another agent

ChatIdentifier

Default : chat://

Range : not available

Description : Chat identifier-prefix

ChatPartnerFound

Default : "You are now connected with an agent."

Range : not available

Description : Message that will be displayed if the customer is connected to an agent

InternalErrorMessage

Default : "Our servers are busy and your request could not be processed. We are sorry for the inconvenience. Please try again later."

Range : not available

Description : Message displayed to the user if an internal error occurs

LookingForChatPartnerMessage

Default : "We are currently looking for your chat partner."

Range : not available

Description : Message displayed to the user while the system is looking for an available agent

SessionClosedByAgentMessage

Default : "The agent closed this chat session."

Range : not available

Description : Message displayed to the user if the chat session was closed by the agent

SessionClosedBySystemMessage

Default : "The chat session was closed by the system."

Range : not available

Description : Message displayed to the user if the chat session was closed by the system

SessionClosedMessage

Default : “This chat session is closed.”

Range : not available

Description : Default message displayed to the user if the chat session was closed

SystemMessagePrefix

Default : \<SYSTEM\>

Range : not available

Description : Prefix for messages issued by the system

VarPool

Default : ``

Range : not available

Description : Define your own Runscript variables. (see chapter 4.3, 8.2.4/8.2.5)

ClearHistoryOnTransfer

Default : False (for Siebel set this value to True)

Range : not available

Description : Clear history buffer before transfer to second agent. If CRM provides its own transcript transfer to transfer target, Chat Conntector’s transcript buffer can be cleared by setting this to True.

CustomerAccepted (CA)

Default : ``

Range : not available

Description : Chat message sent to customer on connect.

HistoryAgentPrefix

Default : NAME

Range : not available

Description : Prefix for messages replayed from message history buffer on agent selection. For default setting “NAME” peer remote name is used.

HistoryCustomerPrefix

Default : (cust)

Range : not available

Description : Prefix for messages replayed from message history buffer on agent selection. If “HistoryAgentPrefix” is not “NAME” messages for agent are prefixed with this setting.

SessionClosedByOverflow

Default : The chat session is closed by overflow.

Range : not available

Description : Chat message sent when session was close by overflow.

SessionClosedByReroute

Default : This chat session was closed by the reroute.

Range : not available

Description :

KVPTransferDelimiter

Default :“|” (pipe character)

Range : not available

Description : Key/Value pair delimiter to separate single pairs. See chapter 9.1 Passing Data to the ChatConnector for more information.

Application Identifier

First of all, you have to make sure that the ChatConnector’s application ID is unique amongst all the applications that connect to the MediaManager. If it is not, you must set ApplicationId to a different value.

Connection to MediaManager

You must specify the host and the port of the MediaManager. Set the values MmHostA, MmHostB and MmPortA, MmPortB. Verify the connection to the MediaManger by using the ChatConnector’s web status page.

VarPool

The ChatConnector’s Variable Pool (VarPool) feature allows the definition of “communication” variables (key/value pairs) which can be set and/or retrieved in a Cisco CCE routing script by using the RunScript-node and forwarded to b+s Siebel or SAP CRM Connectors (see also chapters Set Parameter and Get Parameter)

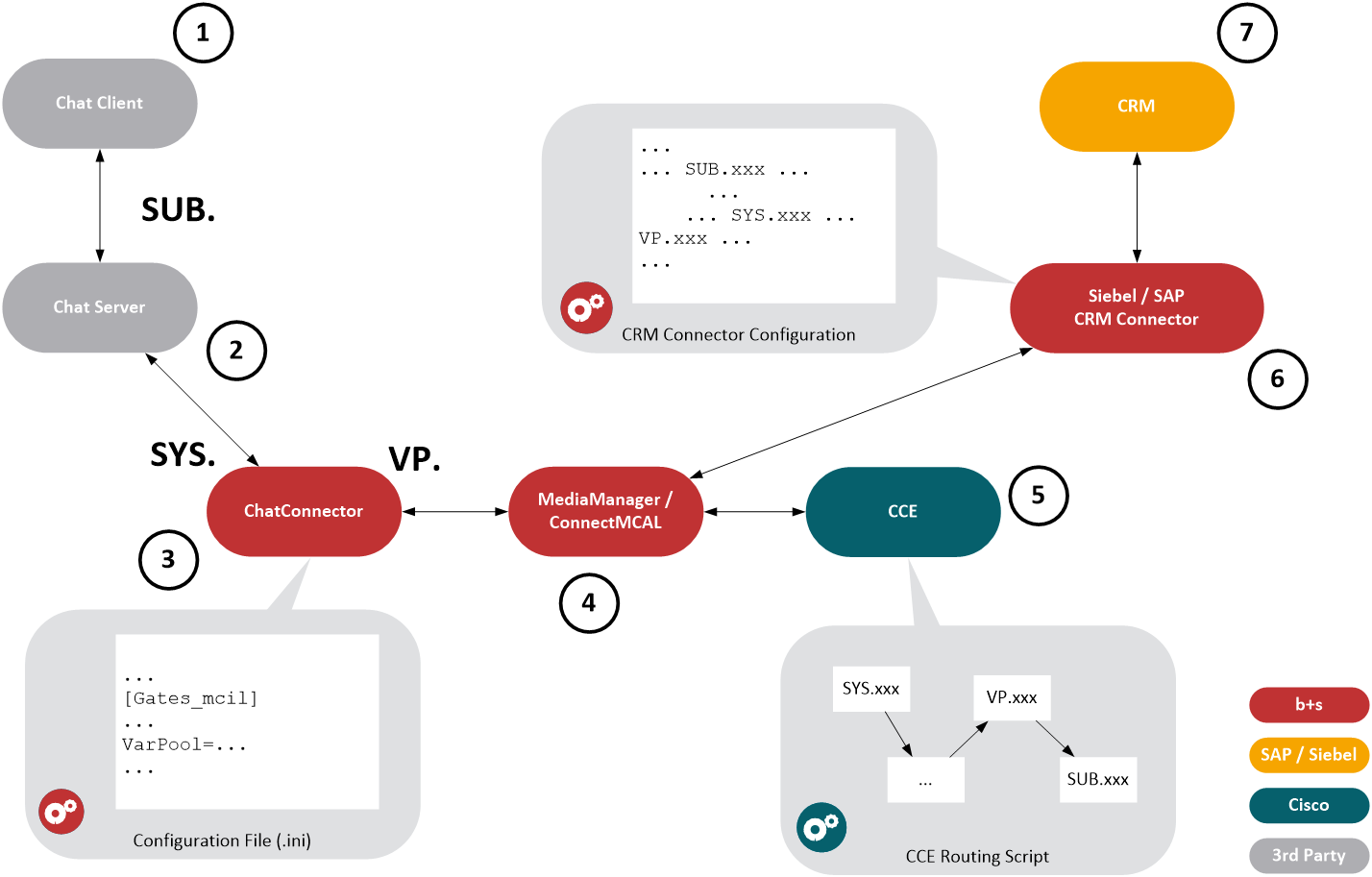

Marker 1: Chat Client

• A (web) chat client can provide a set of variables (key/value pairs). They are sent to the ChatConnector in the first XMPP message stanza either using the child element subject or body (see chapter Transmitting Customer Data to CCE for further information)
  • It might be desired that certain data about the customer and/or the customer’s intention is passed from the end user chat client via the chat server and the ChatConnector to CCE or to the agent itself. Having such data available in CCE makes it possible to refine the agent selection process in the CCE routing script.
  • These set of variables are prefixed with SUB.

Marker 2: Chat Server

• The chat server connects the chat client and the ChatConnector with each other.

Marker 3: Chat Connector

• The ChatConnector knows two other categories of communication variables beside the ones prefixed with SUB: SYS and VP.

• The first category of variables is defined by the ChatConnector itself. These variables are prefixed with SYS.

• The second category of variables can be defined by an administrator in the ChatConnector’s ini-file, configuration section [Gates_mcil], parameter name VarPool. These variables are prefixed with VP.

  Format of the configuration parameter: VarPool=Key{=”Value”[Flags]};Key ... where the part in curly brackets is optional. Default flag is RW

• Meaning of the flags (simple access control):

  Name	Meaning
  R	Variable can be read by using Get Parameter
  W	Variable can be set by using Set Parameter
  T	Variable is transferred to MediaManager and a subsequent OFFER_TASK_EVENT transfers it to the b+s Siebel or SAP CRM Connector respectively to the CRM agent.

• SUB. –variables, transported from the customer’s chat client to the ChatConnector, can be predefined in the ChatConnector’s VarPool-parameter to get other access rights (read access is default).

• Configuration Example:

  VarPool=Nickname[RWT];SUB.SRNumber[RT]

  Defines two variables: Nickname with read & write access and transfer capability to the agent and a predefinition of SUB.SRNumber which can only be read and is also transferred to the agent.

• The state of VarPool variables can be queried by using the ChatConnector’s remote console command $mcil vp <username>

Marker 4: MediaManager / ConnectMCAL

• MediaManager and ConnectMCAL transfer the received VarPool-variables to CCE respectively to the Siebel or SAP CRM Connector.
• Check the b+s MCA for SAP or b+s MCA for Siebel product documentation for required configuration settings of the MediaManager or ConnectorMCAL to use the VarPool-feature

Marker 5: CCE

• See chapter Module Scripting in CCE for getting and setting VarPool-variables from the CCE routing script.

Marker 6 and 7: Siebel / SAP CRM Connector, Siebel / SAP CRM

• As previously mentioned, variables flagged with T are transported to the b+s Siebel or SAP CRM Connector in an OFFER_TASK_EVENT by the MediaManager. This allows Siebel administrators to use this kind of variable directly inside Siebel configuration (i.e. Siebel Definition Files and ‘Communication’ settings).

Jabber-Gate Configuration

The configuration section in the ini-file is thus [Gate_jabber].

[Gate_jabber]

Compress

Default : 0

Range : 0,1

Description : If set, Jabber stream compression is used

Encrypt

Default : 1

Range : 0,1

Description : XMPP communication encryption (TLS)

ChatSessionRemove DelayInSeconds

Default : 10

Range : ``

Description : If XMPP presence notifications are available (depends on the chat server and group settings), chat sessions are disposed after this period of time.

JabberServerHostname

Default : empty

Range : not available

Description : Hostname or IP address of the Jabber server

JabberServerPort

Default : 5222

Range : not available

Description : Remote port of the Jabber server

LogChatMessages

Default : false

Range : not available

Description : Write content of chat messages into the ChatConnector’s log file

ReconnectTimeout

Default : 5000 mSec

Range : not available

Description : Time in milliseconds that must elapse between connection attempts

Chatstates

Default : false

Range : not available

Description : Transfer of ‘Composing’ chat state to agent client and vice versa.

Connection to Chat Server

You must specify the host and the port of the Jabber server. Set the values JabberServerHostName and JabberServerPort.

You must specify the host and the port of the chat server. Set the values JabberServerHostName and JabberServerPort. Verify the connection to the chat server by using the ChatConnector’s web status page.

Chat Users

The ChatConnector’s chat users can be defined in configuration section [DnChatUsers]. The username of a chat user must be unique. Furthermore, a Cisco CCE Script Selector must be associated with each user. Remember that the configured chat users must also be configured in the connected chat server.

Key	Default	Range	Description
Username(n)	<empty>	-	username, must be unique across all gates
Password(n)	<empty>	-	password of the corresponding user (see chapter Encryption of Chat User Passwords)
ScriptSelector(n)	<empty>	-	CCE/CCH Dialed Number / ScriptSelector of corresponding user

Example

In this example two chat users are created:

Purpose	Username	Dialed Number / ScriptSelector
A service than can be contacted for technical support	chatsupport@bucher-suter.com	BucherSuter_support
A service that can be contacted for sales information	chatsales@bucher-suter.com	BucherSuter_sales

Using Direct Edit:

[DnChatUsers]
Username(0)=chatsupport@bucher-suter.com
Password(0)=Zk4332sed
ScriptSelector(0)=BucherSuter_support
Username(1)=chatsales@bucher-suter.com
Password(1)=aF9656opa
ScriptSelector(1)=BucherSuter_sales

Encryption of Chat User Passwords

The passwords for the “DnChatUsers” can be stored in plaintext in the ChatConnector’s .ini file. To encrypt the passwords use the IniFilePasswordEncryptor.exe tool which is copied into the installation directory of the ChatConnector during the installation process.
